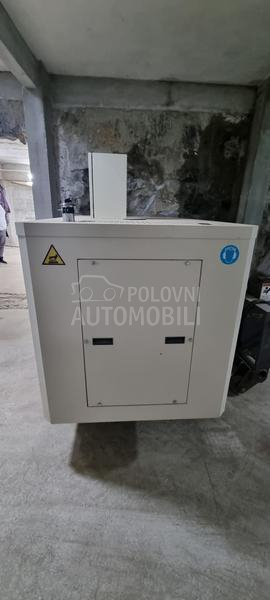

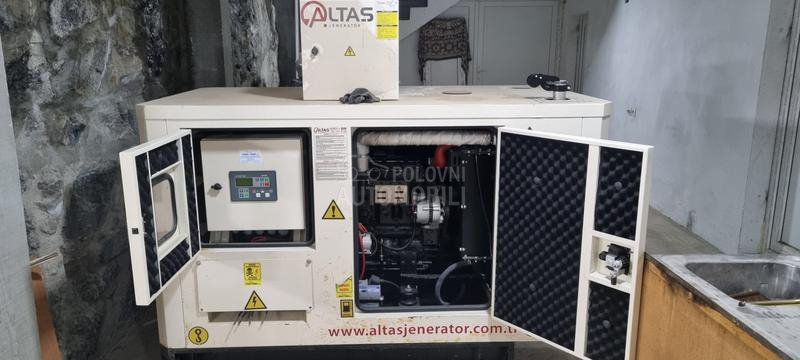

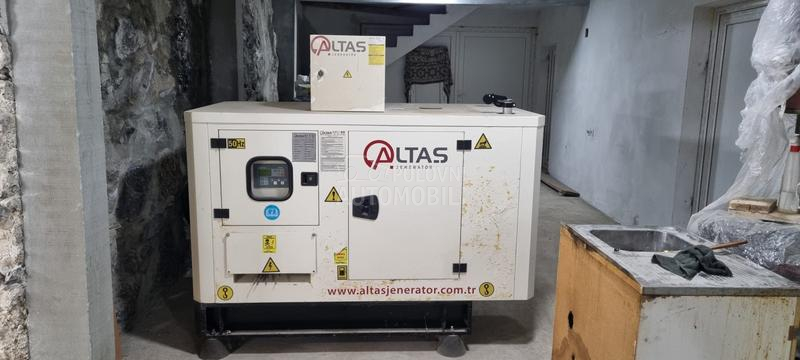

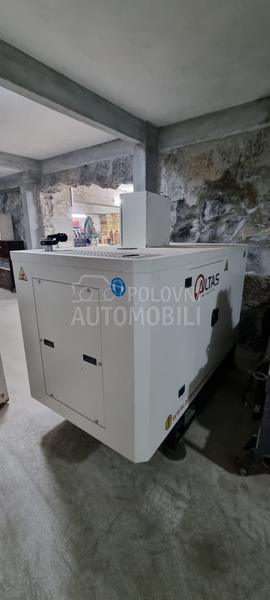

Atlas AJ ELLA 28 2020. godište

Na prodaju agregat Atlas AJ-ELLA 28:
Detaljan opis:

Izlazne vrednost:
Standby Power / Prime Power
kVA | kW | Ampere / kVA | kW | Ampere
28 | 22 | 40 / 25 | 20 | 36

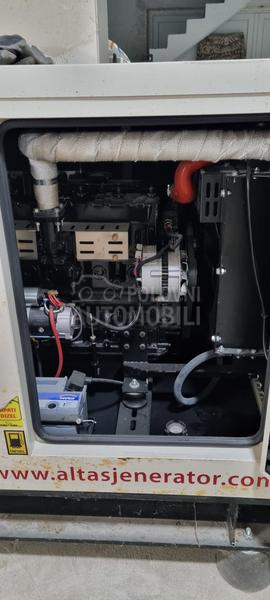

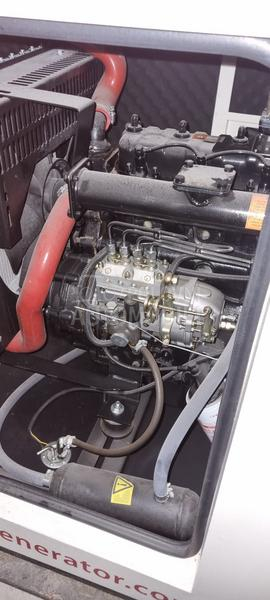

Dizel model:
Model E490D
Max Total Output Power (kWm/hp) 24/32
Cylinder Volume (lt) 2,54
Cylinder Arrangement 4 Single Lines
Bore x Stroke (mm*mm) 90*100
Governor Type Mechanical
Cycle (Rotation) 1500 RPM
Intake System Natural
Spray Type Directly
Cooling Type Water Cooled
Electric System (VCD) 12
Oil Capacity (lt) 8
Cooling Water Capacity (lt) 14
Fuel Consumption %50 (lt/h) 3,12
Fuel Consumption %75 (lt/h) 4,8
Fuel Consumption %100 (lt/h) 6,48

Altenator:
Output Voltage (V) 230/400
Frequency (Hz) 50
Permanent Voltage Reg. (±) (%) 0,01
Short Circuit Current 00 (10 sec)
Insulation Class H
Protection Class IP23
Efficiency(%) 88
Working Time at Overload
Power Factor (cos Phi) 0,8
Total Harmonic Distortion Rate % 1 less than
Connection Style Phillips (Star)
Pole Number 4
Number of Beds Single
Cabin Type AJE-01
